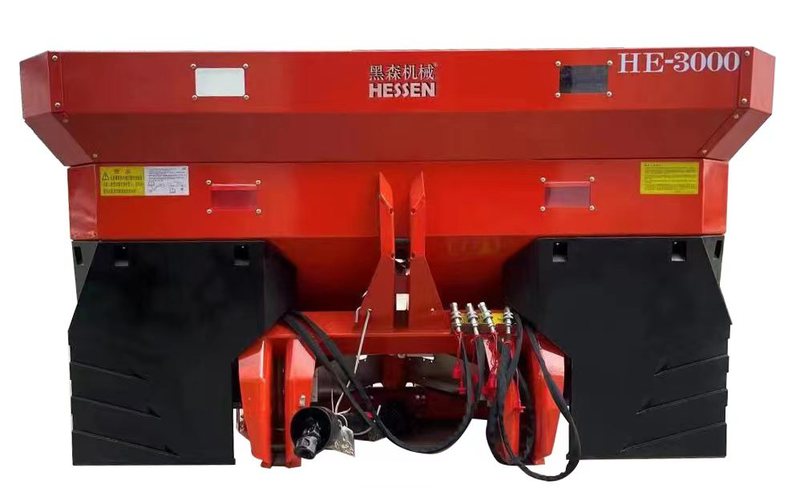

HE1500/2000/3000

HE1500/2000/3000

share
  • Detail
  • Parameters

· Suitable for large farms or lands, big output of fertilizer and high evenness.

· With a rational-design structure, durable surface for longer life, it has large capacity, wide spreading coverage without breaking fertilizer particles. Even spreading as wellprecisely quantity-fix makes it hi-efficient and hi-valuable.

· Even spreading, also suitable for seed sprading.

· Oil-bath gear box, maintenance free, mighty functions, easy operation, and easy to clean.· An adjustment blanking point ensure fertilizer evenness, even for the varied needs of different types of fertilizer and seeds without any auxiliary tools. The working width can be adjusted from 12 -50 meters to ensure the uniformity of different material spread.

· A large diameter discharge port can be precisely quantified, up to 500kg/min for spreading operation.

· A mechanical-driven device matches different horsepower tractor with mechanical driven-shaft rear suspension.

· A gentty mixing device ensure the discharge port unblocked and large fow to reduce the damage to the fertilizer and seeds so they can be well sown to the field.


Model
HE3000
Length (cm)
260
Width (cm)
160
Height (cm)
143
Weight (kg)
495
Capacity (L)
3000
Spreading Width (m)
12~50
P.T.O. Max.Speed (rpm)
540-600
HP
120~240
