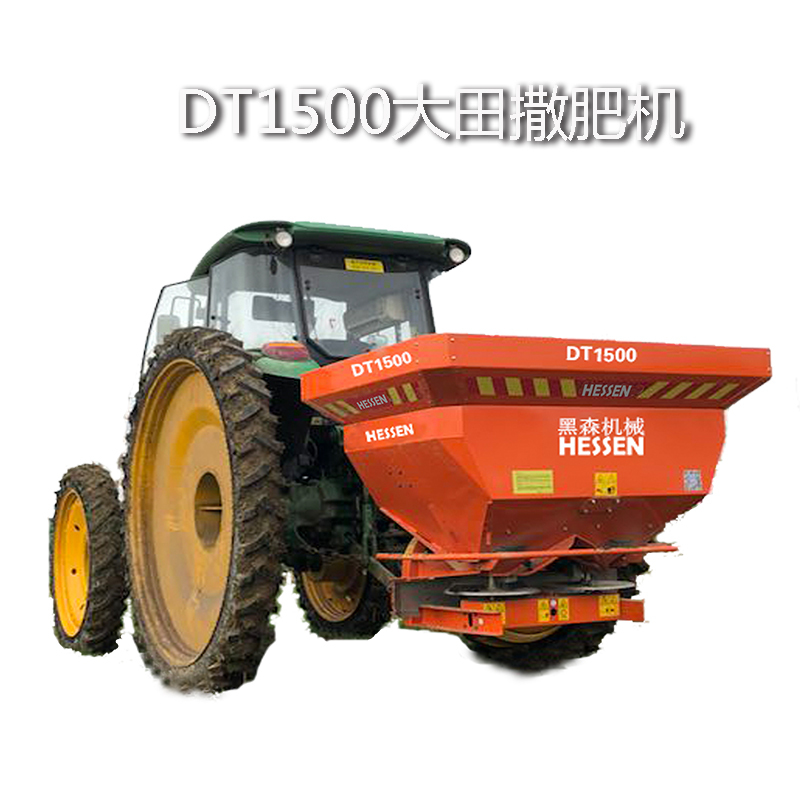

DT1500 Double Disc Spreader

DT1500 Double Disc Spreader

share
  • Detail
  • Parameters

DT1500 type spreader is designed for large farms in China and agricultural cooperatives and agricultural cooperatives professional services in the field of fertilizer sowing and the design and manufacture, the machine is reasonable in design, durable, large capacity, wide spread, fertilization amount can be adjusted with high precision, high efficiency, uniform sowing Jun, the hydraulic control system can realize the opening and closing of fertilizer exports, also can control the switching system around a rotating disk alone sow boundary, suitable for use in small plots, to meet the needs of professionals in our country farming, to more than 70 horsepower tractor!

type
Field
Model
DT1500
brand
HESSEN
introduce
DT1500 type spreader is designed for large farms in China and agricultural cooperatives and agricultural cooperatives professional services in the field of fertilizer sowing and the design and manufac
Capacity of material box
1500
overall length
1880
overall width
1300
Height
1390
Net weight of the whole machin
310kg
Throwing wide
12~24米
Equipped with power
More than 80 horsepower
Drive shaft speed
540~720
Hole number of fertilizer outl
2
Throwing blade number
4
Adaptation to fertilizer type
Granular
Oil cylinder working pressure
10 MPa
Tubing joint thread
G1/2 "quick joint
Performance introduction
Suitable for large area planting, equipped with medium and large tractors"
